3. Loading 3D Layers

Feedback


Overview

In the 3D scene, you can open all layers in the 3D scene and the specified layers in the scene, such as the terrain, image, model, vector layer, etc. Layers are divided into six categories in the SuperMap iClient 7C for 3D: the terrain image layer, the 3D model layer, the image layer, the vector layer, the KML layer and the KMZ layer.

Different layers have different loading methods, the 3D model layer, the image layer, the vector layer, the KML layer and the KMZ layer are loaded by the LayerD type, the terrain image layer is loaded by the TerrainLayer type. When loading the layers, you need to know the type and name of the layer and the data path, which can be obtained by the Layer3DServicesList class. The Layer3DServicesList class records all 3D layer set services and the information of each layer in the 3D layer set.

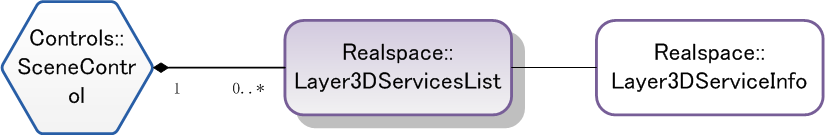

 layer3DServicesList Structure Chart

layer3DServicesList Structure Chart

 layer3DServicesList 常用属性

  Interface Description
count Obtains the total number of the layer services in the layer set.
item Obtains the 3D layer service information with the specified layer index number (Nember type) or name (String type) in the 3D layer set.
sceneName Obtains the name of the belonged scene service.
sceneAddress Obtains the service address of the layer set.

 layer3DServicesList Common Methods

  Interface Description
load Obtains the lists of the layer set services in the specified scene.
removeAll Removes all the layer service information in the layer service set.

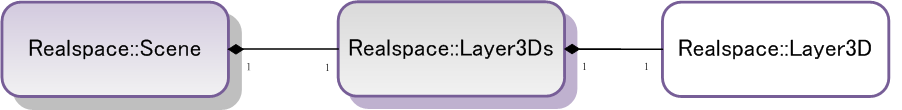

 Layer3Ds Structure Chart

Scene Structure Chart

 Layer3Ds Common Attributes

  Interface Description
count Obtains the total number of the 3D layer objects in a given 3D layer set.
isVisible Gets or sets the visibility of the 3D layer set.
item Obtains the 3D layer object with the specified index number (Nember type) or the specified layer name type (String type) in the 3D layer set. If the specified layer doesn't exist, Null will be returned.

 Layer3Ds Common Methods

  Interface Description
add Add 3D layers with the type of the 3DImage, 3DModel and KML to the 3D layer set.
indexOf Finds the index number of the specified layer name in the 3D layer set.
insert Inserts 3D layers with the type of the Image, Model or KML to the specified location in the 3D layer set.
moveDown Moves the 3D layer with the specified index number in the 3D layer set down one level.
moveTo >Moves the 3D layer with the specified index number in the 3D layer set to the location with the specified index number.
moveToBottom Moves the 3D layer with the specified index number in the 3D layer set to the bottom.
moveToTop Moves the 3D layer with the specified index number in the 3D layer set to the top.
moveUp Moves the 3D layer with the specified index number in the 3D layer set up one level.
removeAll Removes all the layers in the layer set.
removeAt Removes the layers with the specified layer name or index number.

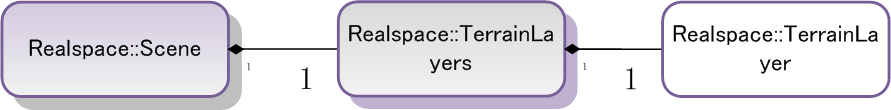

 TerrainLayers Structure Chart

TerrainLayers Structure Chart

 TerrainLayers Common Attributes

  Interface Explanation
count Obtains the total number of the terrain layer objects in the specified terrain layer set.
item Obtains the terrain layer object with the specified index number (Nember type) or the specified layer name (String type) in the terrain layer set.

 TerrainLayers Common Methods

  Interface Description
add Add the terrain layers to the terrain layer set.
indexOf finds the index number with the specified layer name in the terrain layer set.
insert Inserts terrain layers to the specified location in the 3D layer set.
moveDown Moves the terrain layer with the specified index number in the terrain layer set down one level.
moveTo Moves the terrain layer with the specified index number in the terrain layer set to the location with the specified index number.
moveToBottom Moves the terrain layer with the specified index number in the terrain layer set to the bottom.
moveToTop Moves the terrain layer with the specified index number in the terrain layer set to the top.
moveUp Moves the terrain layer with the specified index number in the terrain layer set up one level.
removeAll Removes all the layers in the terrain layer set.
removeAt Removes layers with the specified layer name or index number.

Load the 3D layers
